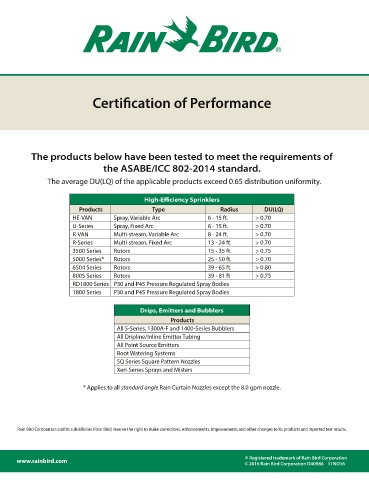

Certification of Performance

The products below have been tested to meet the requirements of
the ASABE/ICC 802-2014 standard.

The average DU(LQ) of the applicable products exceed 0.65 distribution uniformity.

High-Efficiency Sprinklers
Products Type Radius DU(LQ)
HE-VAN Spray, Variable Arc 6 - 15 ft. > 0.70
U-Series Spray, Fixed Arc 6 - 15 ft. > 0.70
R-VAN Multi-stream, Variable Arc 8 - 24 ft. > 0.70
R-Series Multi-stream, Fixed Arc 13 - 24 ft. > 0.70
3500 Series Rotors 15 - 35 ft. > 0.75
5000 Series* Rotors 25 - 50 ft. > 0.70
6504 Series Rotors 39 - 65 ft. > 0.80
8005 Series Rotors 39 - 81 ft > 0.75
RD1800 Series P30 and P45 Pressure Regulated Spray Bodies
1800 Series P30 and P45 Pressure Regulated Spray Bodies

Drips, Emitters and Bubblers
Products
All 5-Series, 1300A-F and 1400-Series Bubblers
All Dripline/Inline Emitter Tubing
All Point Source Emitters
Root Watering Systems
SQ Series Square Pattern Nozzles
Xeri-Series Sprays and Misters

* Applies to all standard angle Rain Curtain Nozzles except the 8.0 gpm nozzle.

Rain Bird Corporation and its subsidiaries (Rain Bird) reserve the right to make corrections, enhancements, improvements and other changes to its products and reported test results.

www.rainbird.com ® Registered trademark of Rain Bird Corporation
© 2016 Rain Bird Corporation D40986 11NO16
